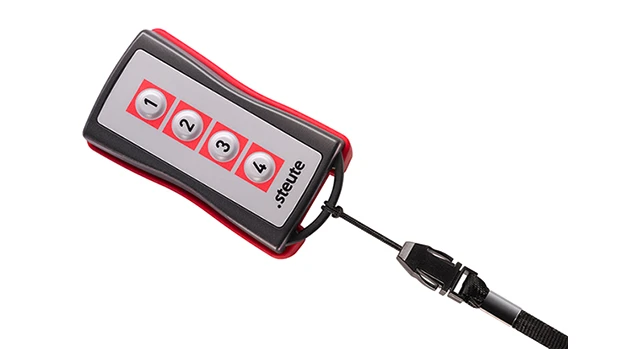

Steute’s wireless handheld remote control pendants feature 4 discrete function keys which, when actuated, each sends a unique, coded telegram to one or more compatible, easily-programmed receivers. Receiver accepts up to 10 discrete telegrams per channel.
Features
- Rugged ABS thermoplastic housing with surrounding shock protection
- Replaceable lithium battery (CR 2032)
- Available for 915MHz, 868MHz or 2.4GHz operation
- 4 membrane push-button-style actuators
- Maximum nominal transmission range: 165ft (50m) indoors, 1,475ft (450m) free air
- Control signals configurable at receiver (e.g. NO, NC, other)
- Ingress protection rating: IP54
- Mechanical life expectancy: >1 million actuations
- Operating temperature range: -4°F (-20°C) to 150°F (+65°C)
- Certifications: FCC, IC (SW915 MHz models, EC (SW868 MHz models)
Options:
- Custom graphics
- Transmission range extenders
Typical applications:
- Overhead crane control
- Automatic loading dock overhead door controls
- Multiple remote machinery function controls
