Small motor delivers big results

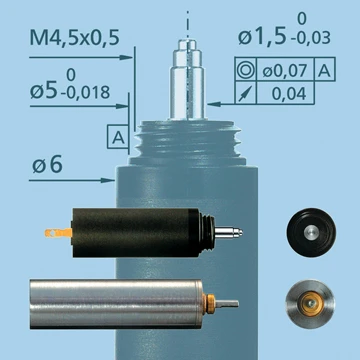

According to the manufacturer, the Faulhaber 0615 motor is presently the only production 6mm diameter coreless DC motor available with a matching diameter planetary gearhead.

Designed with a high-energy, rare earth magnet and the patented Faulhaber skewwinding, it is available in 1.5, 3, and 4 volt versions. The motor has a no-load speed of 19,000 rpm and is capable of .11 mNm continuous and peak torque at stall of .24 mNm.

The output power of the motor is .12 Watts and the standard operating temperature range is -30°C to +85°C.

The matching 06/1 planetary gearhead is an all steel design available in ratios from 4:1 up to 4,096:1. The gearhead is rated at 25 mNm continuous and 35 mNm peak. The standard operating temperature range is -30°C to +100°C. A radial shaft load of up to 5N is possible with the ball bearing version, model 06/1K.

MicroMo Electronics Inc.
Clearwater, FL
micromo.com
