Scalable Vision Solution

Achieving 100% inspection and identification is essential for most products. Low-volume production often goes hand-in-hand with high costs, particularly if the variety of products concerned is also extensive. DePuy Spine (a Johnson & Johnson company) is a good example of this, producing small implants such as screws for spinal surgery.

Previously this kind of operation had been done manually, but with regulations growing ever stricter, it became clear that only vision technology could provide the kind of solution necessary. Flexible part automation using a desktop robot and a Cognex vision system, developed by Compar, integrates the power of Cognex PC vision solutions and proves more suitable and economical than fullyautomated in-line inspection.

Right Platform

Cognex partner integrator Compar developed the flexible and scalable vision solution based on Cognex PC vision.

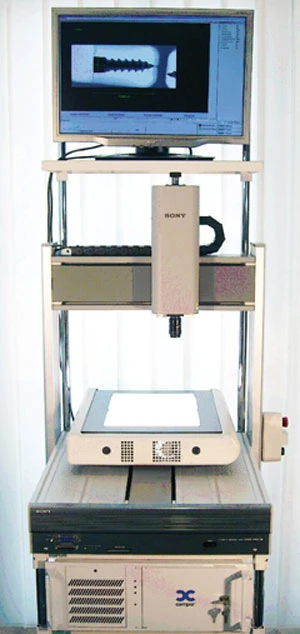

Flexible automation using a desktop robot and a Cognex vision system allows for fully-automated inspection of the implants.

Each implant is placed in the cell of a blister pack. Each batch is identifiable by a code and certain nests may be empty. The products are inspected in their individual nests by being passed through a desktop vision system. The autonomous inspection system (AIS) consists of a two-axis desktop robot and a PC-based vision system using the Cognex Vision Library as a platform. The camera is mounted on the desktop robot's Y-axis, while the blister packs are moved along under the camera in the X-direction. Several inspections can be conducted for each nest. To simplify the entry of data per batch, the system is equipped with a barcode scanner. The inspected data are compared against the set values and permissible tolerances. If a faulty product is detected, an alarm is triggered and quality assurance personnel remove the product for manual inspection. An added advantage of the system is that it ensures full 21 CFR Part 11 compliance by tracking the results for each batch and integrating them for future reference. With the automation of the inspection process using vision, DePuy can be sure that the results being stored for each batch are reliable.

Major Advantages

Integration of vision • in a mechanical environment allowing inspection of the whole batch in one;

• Allows complete inspection so all products conform;
• 100% inspection and quality control of medical implants before they are shipped around the world;
• Full traceability ensuring compliance;
• Manual process more efficient; and
• Camera does not need not to be exactly positioned and the results are still reliable.

Scalable Solution

Future plans for expansion of the application may include surface inspection, print layout inspection, soldering point inspection, or code reading. The solution proposed here is easily adaptable for many other types of inspection and identification applications.

Johann Faneca, production manager at DePuy Spine had this to say, "We are very pleased with the vision installation - thanks to the automated solution from Cognex and Compar we estimate a time saving of more than CHF 100,000 for the first year, which will be an excellent return on our investment."
