Rapid Prototyping Materials Answer Medical Device Development Needs

Varian Inc., a leader in Nuclear Magnetic Resonance (NMR) technology, produced the first commercial NMR spectrometer more than 50 years ago. Since then, NMR has become a standard technique for chemical, biological, medical and physical research. NMR imaging systems are recognized as significant tools for medical diagnostics.

NMR works because atomic nuclei behave like magnets when exposed to an external magnetic field. Under such conditions, the spinning nuclei create small magnetic fields that can be stimulated using specific frequencies of electro- magnetic energy. The result is that radio waves are emitted. Those waves can be measured to create a visual image of both the molecular structure being studied and its environment.

In developing NMR technology, it is essential to anticipate the performance of emerging devices. This is complicated by the fact that imaging systems may feature varying global standards. Therefore, it is usually not practical to use humans to test and verify performance. This challenge is resolved by using what is called a "phantom." Phantoms are objects that do not occur in nature but can be created to replicate a human standard that can be imaged to test the performance of magnetic imaging systems.

These phantoms are kept on site to verify system performance through quality assurance protocols.

Recently, Varian was commissioned to develop miniature spatial phantoms for use in testing and calibrating gradient systems in small and micro-bore magnetic resonance imaging (MRI) systems. For clinical systems, these types of phantoms are most often constructed from machined plastic. For the smaller scale phantoms needed for Micro- Imaging this is not feasible so they turned to Stereolithography (SL) technology to achieve the needed detail.

Portions of the inside of the phantom are removed to create a test pattern, after which the phantom is filled with an aqueous solution. When imaged, the NMR device displays the signal from the water in the water-filled sections of the plastic. It was therefore necessary to create a device that could withstand rigorous use with aqueous substances. To do so, we had to first identify a resin with characteristics encompassing low-water absorbency coupled with superior transparency necessary for detecting and removing undesirable air bubbles.

SL is a process that permits rapid creation of 3D pieces utilizing a computer- controlled laser that polymerizes light-sensitive resins. SL is highly precise and constructs the object in a series of additive layers. As a technology for prototyping our spatial phantom device, SL was an ideal methodology; however, selection of a resin remained a key priority.

In exploring resin opportunities, we were quickly able to identify several options that seemed to match our requirements.

We ultimately selected an SL resin that allegedly simulated the appearance and physical characteristics of polycarbonate. At the surface level, this seemed appropriate because polycarbonate has low water absorbency and is the plastic of choice for larger phantoms. Moreover, polycarbonates feature high temperature resistance, high impact resistance and clear optical properties. Consequently they are widely used in the medical and chemical industries.

Wrong Approach

While our first choice did have many attributes similar to polycarbonate, it was not tolerant of an aqueous environment.

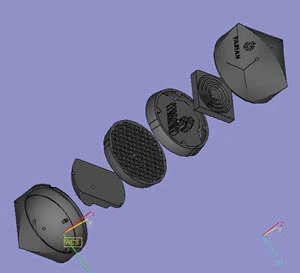

Miniature spatial phantoms manufactured from moisture-resistant WaterShed XC 11122 SL material.

Within one week, the prototyped product we created failed because the part was moisture sensitive.

As a result, it expanded and distorted in an aqueous environment. The vendor did say that the resin was sensitive to humidity, but they did not have any water absorbency data available. Right Approach Our unfavorable experience with the initial SL resin caused us to seek input from Protogenic Inc. (our SL prototype supplier) who suggested several alternatives.

This time, however, rather than proceeding to actual prototyping of the device, we established a resin evaluation procedure.

We subjected small tokens made from a number of resins to a long-term soak test in a relevant aqueous solution.

We made periodic weight and size measurements of those samples over the course of seven months.

Although time was obviously consumed by the procedure of testing SL resins, the result was that we saved time and backtracking by first determining the resin most appropriate to our needs. The resin that prevailed was DSM Somos' WaterShed.

Proper resin evaluation took time initially, but saved time in the end, by leading Varian to the best material option for the rapid, direct manufacture of a medical device component.

WaterShed is an optically-clear rapid SL prototyping resin developed to provide ABS-like properties, clarity and excellent temperature resistance.

WaterShed proved, in our application, to produce clear, functional, accurate parts that simulate acrylic in appearance.

Most importantly, WaterShed XC 11122 provided the lowest available water absorption versus alternative resins. We successfully used two grades: WaterShed XC 11122 and XC 11112.
