New high accuracyMicrogage CMM

Helmel Engineering Products will introduce a new system that offers extraordinary value in the high accuracy CMM market.

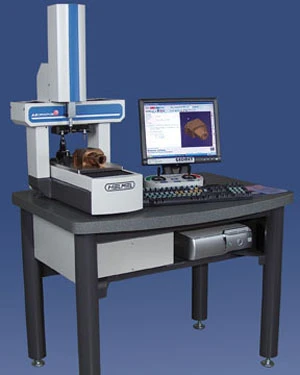

Helmel Engineering Products will introduce a new system that offers extraordinary value in the high accuracy CMM market. It is a small format desktop 3 dimensional Direct Computer Controlled instrument expected to deliver volumetric accuracy of better than 5 micrometers with repeatability of 0.7 micrometers, and scale resolution of 0.1 micrometers. The XYZ travel range is 225mm x 150mm x 125mm. The system features precision linear bearings in the X and Y axes and instrument roller bearings for the Z axis. The Microgage is capable of dimensional inspection, scanning, and reverse engineering of critical manufactured parts. The system utilizes Helmel's GEOMET CMM Metrology Software and motion control, providing easy operator control over geometric measurement, analysis, and programming.

Helmel Engineering Products, Inc. Niagara Falls, NY helmel.com Booth #D-4500
