Hollow Rotary Actuators

RoHS compliant DG 200 has been added to the DG series of hollow rotary actuators.


RoHS compliant DG 200 has been added to the DG series of hollow rotary actuators. The larger DG 200 has a repetitive position accuracy of 15 arc-seconds and a total backlash of 2 arc-minutes due to its integrated high rigidity cross-roller bearing structure. A hollow through hole of sufficiently large diameter helps reduce the complexity of wiring and piping, further simplifying the equipment design.

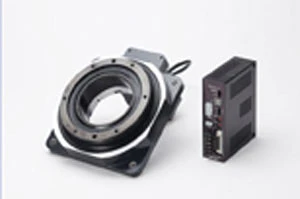

The Oriental Motor DG 200 has a frame size of 7.87" (200mm) with an internal hollow diameter of 3.94" (100mm). It develops 440 lb/in (50Nm) of torque at a speed of up to 110rpm available for positioning larger inertial loads. A number of selectable accessories are available. Equipment tables and arms can be installed on the output table, saving the hassle and cost of designing an installation mechanism, arranging necessary parts, adjusting the belt tensions, etc., when mechanical parts such as belt and pulley are used for installation.

The DG 200 uses the Oriental Motor AlphaStep stepping motor and controller that is designed to maintain synchronous motion under sudden load fluctuations. The AlphaStep provides error-free closed-loop control when moving and open-loop step motor final positioning.
