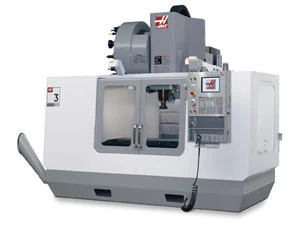

To meet the needs of shops requiring the heavy-duty cutting capability of a 50-taper machine in a small footprint , Haas Automation, Inc., is exhibiting the VF-3YT/50 vertical machining center with extended Y-axis travel. This VMC is the most compact 50-taper machine built by Haas. The VF- 3YT/50 features a 40 in. x 26 in. x 25 in. work envelope, an increase of 4 in. over the standard Haas VF-3, and a 52 in. x 23 in. table. The extended Y-axis travel is achieved through a larger base casting.
Heavy cast-iron construction provides the rigidity and stability necessary for heavy cutting, and the wide T-slot table provides plenty of room for fixturing and large parts. The VF-3YT/50 comes standard with a 30-pocket side-mount tool changer and a 30-hp, 7500-rpm, geared-head spindle system that delivers up to 450 ft-lb of torque.
Standard features also include an automatic chip auger, programmable coolant nozzle, floppy drive, remote jog handle, and the Haas Visual Quick Code programming system. A large selection of high-productivity options are available to tailor the VF-3YT/50 to the specific needs of each shop, including a 10,000-rpm spindle, 1,000-psi through-spindle coolant, and high-speed machining software with full look-ahead. The VF-3YT/50 has the power of a large machine to easily cut stainless steel, cast iron and hard alloys, while taking up little space on the shop floor.
Haas Automation, Inc. Oxnard, CA haascnc.com Booth #A-8000
