Brushless Servo

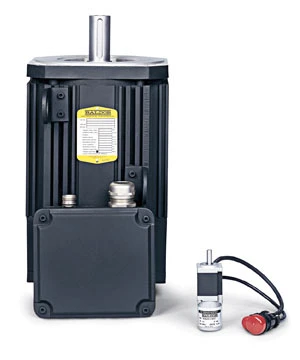

A high-power brushless servo motor, the BSM132, has the capability to reach 20hp (14.5Kw), and can be expanded to 34hp (25Kw) with optional blower cooling.


A high-power brushless servo motor, the BSM132, has the capability to reach 20hp (14.5Kw), and can be expanded to 34hp (25Kw) with optional blower cooling. BSM132 servo motors provide continuous stall torque from 620 lb/in (70Nm) to 1,060 lb/in (120Nm), and speed capability to 5,000rpm for applications needing faster positioning.

Design features include:

  • Sealing to IP65-protection against dust and low pressure water jets
  • Optional blower cooling-extends performance range
  • Optional rotatable connectors
  • Feedback including resolver or absolute encoder (single & multi-turn)
  • Quality servo-rated ball bearings for durability and smoothness
  • Double insulated, multicoated magnet wire for reliability
  • Premium grease-provides four times longer life.

The BSM132 servomotor has been designed to provide high quality and performance, and offers improved torque per package size, reduced maintenance cost and quick response.
