Bearings For Harsh Environments

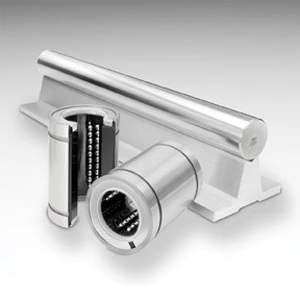

Thomson Stainless Steel MultiTrac ball bushing bearings are constructed of 440 stainless steel components to resist rust and corrosion, these bearings are built to thrive in harsh environments with temperatures up to 180°F (82°C). Machine builders will benefit from extended service intervals and longer bearing life, increased machine reliability, and reduced service and support costs. They feature a patented multiple track design that delivers up to twice the load-carrying capacity, or eight times the operating life, of conventional linear bearings. When combined with Thomson stainless steel 60 Case shafting, the shaft life is also extended when compared to conventional shafting. Most sizes are available with same or next day delivery.

These ball bushing bearings, with a coefficient of friction as low as 0.001, allow machine builders to use smaller, less expensive motors, belts, gears and ballscrews when replacing high friction, plain bearings, to help them build a better machine, faster, and more cost effectively. Users will also benefit from patented ball control technology that ensures optimum rolling element transition while eliminating the binding and chatter common to plain bushings and sliding-way bearings.

Thomson Stainless Steel MultiTrac ball bushing bearings deliver steady state travel speeds up to 10 ft/sec (3m/sec) and accelerations to 450 ft/sec2 (150m/sec2), without the use of derating factors that are typically necessary with competitive products. Derating factors can result in the need to specify larger, more expensive bearings to deliver the same level of performance that is achieved with smaller Thomson Stainless Steel MultiTrac ball bushing bearings.

Thomson Stainless Steel MultiTrac ball bushing bearings are available in 8mm, 12mm, 16mm, 20mm, 25mm and 30 mm sizes as standard, with adjustable, closed and open configurations. They feature industry standard dimensions for direct interchange with competitive and legacy applications, and their corrosion-resistant design makes them well suited for use in various industrial automation, food and beverage, and medical device applications, among others.

When combined with genuine Thomson 60 Case shafting, Thomson Stainless Steel MultiTrac ball bushing bearings deliver even longer life and higher load carrying capacity when compared with conventional linear bearings, allowing users to minimize component size for reduced space requirements and system costs.
