Ball rail system available with precision steel rails

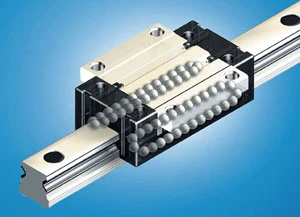

For simpler handling and assembly tasks, as well as light-duty machines, Rexroth now offers an economical rail solution that can handle heavier payloads. The new eLINE Ball Rail System is constructed of aluminum, coupled with ball raceways made with roller bearing steel, allowing for low weight, high corrosion resistance, compact design, and equal load capacity in all four directions. Due to the flexibility of the aluminum alloy, the new eLINE Ball Rail System can handle minor mounting surface deviations, evening out roughness or small parallelism discrepancies between rails. The eLINE Ball Rail System is available in sizes 15, 20, and 25 with single piece rail lengths up to 2000mm. Users can also choose between accuracy classes N and E, with or without pre-load.

Bosch Rexroth- Linear Motion & Assembly Technology Hoffman Estates, IL boschrexroth-us.com
