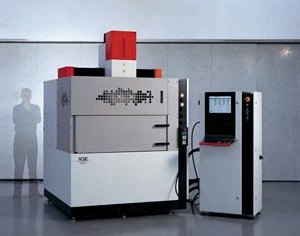

The Agietron Spirit 3 was designed to be the simplest and fastest CNC die sinking EDM system in the Spirit line. Capable of handling workpieces up to 43 in. x 30 in. x 15 in., the Spirit 3 performs in a comprehensive range of applications, from simple repair jobs to complex multiple cavities.
Featuring a CE Compliant design that improves thermal stability over long periods of time, the Agietron Spirit 3 has a unique manual-centering mode that precisely centers an electrode in an existing cavity, extremely useful for mold repairs minimizing time spent on CNC programming. Additionally, the integration of the Caxis adds capability for rotation, indexing and complex erosion, while the inclusion of AgieBril technology within the spark generator provides finishes as fine as Ra 0.2ìm in steel using copper electrodes.
The Spirit 3 is a true "Plug & Play" EDM system that enables start up and production within an hour of delivery. The highly flexible user interface reduces programming times to minutes instead of hours by simplifying complex job programming for multi-cavity, planetary, helical shape, deep rib an four-axis erosion. The system also provides full erosion path contouring capabilities.
The Spirit 3 also contains Automatic Erosion Programming that makes it easy for users to select erosion technologies by application type, set minimum wear and maximum removal priorities, and get perfect results on the first try. Additionally, the unit includes some of the following built-in planetary (orbiting) application technologies: Equimode, circular orbit, 2D vector, 3D vector, continuous rotation, continuous circle or sphere, and contouring.
Agie Charmilles
Lincolnshire, IL
agiecharmilles.us
