1,000W Power Supply

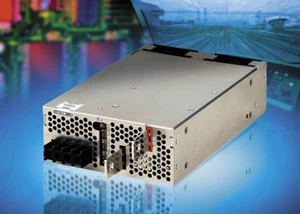

The SWS1000L 1,000W units, are medically-approved and can be supplied with the choice of a 5V, 12V or 24V output. The 24V model has a peak output power of 1,224W. Lambda will extend this series very soon to offer more output voltage selections between 3.3V and 60V. The SWS1000L models have a 4kVAC input to output isolation and low leakage current (<300µA) while retaining Class B conducted and radiated EMI performance. These supplies have a low profile of only 2.4". The operating temperature range is from -20°C up to +74°C.

Each model accepts a wide input range of from 85VAC to 265VAC, making them compatible with global power standards. The SWS1000L features a wide output voltage adjustment range of up to +/-20% to accommodate non-standard system voltages, while an external voltage programming feature (1V to 6V input) enables the supplies to be adjusted remotely from 20% to 120% of its nominal output voltage on most models. This unique feature allows the SWS1000L to be used as an inexpensive bench or laboratory power supply.

Lambda Americas Inc.
San Diego, CA
lambda.com
