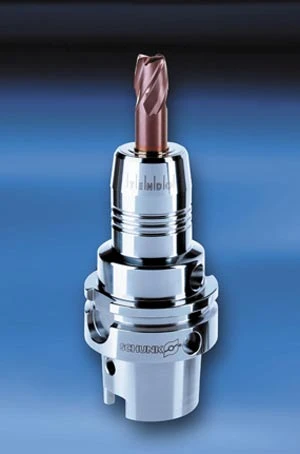

TENDO HYDRAULIC TOOLHOLDERS

SCHUNK Inc. introduces new features to their Hydraulic Toolholders, giving them the ability to clamp different types of cutting tools with cylindrical shanks directly in the toolholder without using intermediate sleeves. This makes the TENDO system even more universal during its application of various tasks. Torque transmission capacity has also been increased by up to 15%.

The clamping of the cutting tool is done by a steel sleeve surrounded by a hydraulic fluid. When initializing the clamping process, an internal piston forces the hydraulic fluid into a cavity surrounding the steel sleeve. The high pressure uniformly forces the sleeve around any cutting tool shank.

Cutting tools with different shanks are held with great concentricity of less than 0.002mm. The enormous clamping pressure displaces oil or grease into the TENDO groove in the clamping bore. Clamping areas remain dry and high-torque transmission is guaranteed at all spindle speeds. The hydraulic system also absorbs vibrations inherent in the cutting or grinding processes. The results are very high T.I.R. accuracy and repeatability less then 3 microns (0.00012 in.), tool life is extended up to four times and has greatly improved surface quality of machined parts.

TENDO Hydraulic Toolholders offer precise toolholding solutions for almost every manufacturing process. The toolholders are suitable for high-speed and fine milling, heavy-duty milling, wood machining, HSC (high speed machining), internal grinding, boring and chamfering, precision reaming, and precision tool grinding. With TENDO slotted, coolant-proof intermediate sleeves, different shank diameters can be handled with the same toolholder for additional application versatility and tooling cost savings. All TENDO Hydraulic Toolholders are completely closed systems that operate free of dirt, coolants, lubricants, and chips to assure low maintenance and high operating lifetime. As an option, TENDO Hydraulic Toolholders are available with a radial length adjustement allowing micro precise adjustment to guarantee higher process performance.
